In 1942, the RLM contacted Junkers to design a four-engined jet bomber, which became the Ju 287. Meanwhile, Heinkel also did some design work on this specification. In June 1943, the RLM issued a different specification for a two seat bomber with a bombload of 2000 kg (4409 lbs) and a speed of  800 km/h (497 mph) over a range of 2500 km (1554 miles). Siegfried Günter of the Junkers Design Bureau in Vienna designed at least four versions of the P.1068 by the end of 1943. Some of this design work was later used for the Heinkel He 343.

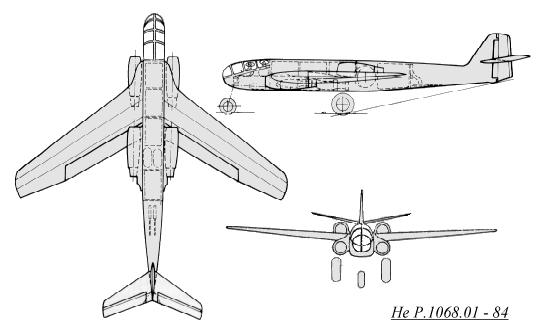

          The last of the P.1068.01 designs was also the only one that featured a swept wing. The wing was swept back at 35 degrees, and four He S 011 jet engines were mounted along the fuselage, two in front and below the wings and two behind and above the wings. Although wind tunnel testing showed a marked improvement of flight handling at slower speeds and during landing (due to the engine arrangement), the swept wing version offered only a slight increase in speed over the other straight winged versions.

Heinkel He P.1068.01-84 Dimensions
Span Length Height Wing Area Fuselage Width Wheel Track
17 m
55' 9"		 17 m
55' 9"		 1.8 m
5' 11"		 45 m²
484.38 ft²		 1.3 m
4' 3"		 3 m
9' 10"

Heinkel He P.1068.01-84 Weights
Empty Weight Fuel Lubricants Crew Load Max. Load Takeoff Weight Wing Loading
11060 kg
24383 lbs		 5500 kg
17130 lbs		 170 kg
375 lbs		 200 kg
441 lbs		 1500 kg
3307 lbs		 7200 kg
15873 lbs		 18260 kg
40256 lbs		 405.8 kg/m²
83.11 lbs/ft²

Heinkel He P.1068.01-84 Performance
Max. Speed Rate of Climb Service Ceiling Range Takeoff Run Landing Speed
894 km/h @ sea level
556 mph @ sea level
-------------------------
895 km/h @ 6000 m
556 mph @ 19685'
-------------------------
872 km/h @ 10000 m
542 mph @ 32808'
-------------------------
842 km/h @ 12000 m
523 mph @ 39370'		 28 m/sec
92 ft/sec		 12500 m
41010'		 630 km @ sea level
391 miles @ sea level
-------------------------
960 km @ 6000 m
597 miles @ 19685'
-------------------------
1350 km @ 10000 m
839 miles @ 32808'
-------------------------
1620 km @ 12000 m
1007 miles @ 39370'		 1000 m
3281'		 166 km/h
103 mph





Above image from Geheimprojekte der Luftwaffe Band II: Strategische Bomber 1935-1945
