Beginning in 1940, the DFS (Deutsches Forschungsinstitut für Segelflug), or German Research Institute for Gliders, started an ambitious program to achieve supersonic flight. Since the only engines powerful enough and available at the time were rocket engines, it was realized that the solution was to have the assault on the sound barrier take place at a high altitude. It was decided to divide the program into three sections: The DFS decided to design a new aircraft (although much was learned in an earlier design, the DFS 54) to investigate the first part of their three-step program. Thus, in 1941, the RLM assigned the number 228 to the aircraft, and requested that the DFS 228 also be designed for high-altitude reconnaissance duties as well as research work.
          The first prototype of the DFS 228 (coded D-IBFQ) was completed in 1943 by the DFS, although the control sections and landing skid were built by Schmetz. The fuselage of the DFS 228 V1 consisted of three circular sections: the nose section containing the cockpit; a center section which contained the landing skid, fuel tanks and a Zeiss infra-red camera; and the tail section with the Walter HWK 509A-1 or A-2 rocket engine. The wing was attached at the mid-fuselage point, and featured 4.5 degrees of dihedral. Wooden construction was used for the entire wing, with a single laminated wooden spar running from wingtip to wingtip, wooden ribs and a plywood covering.  Wide-span divided ailerons were fitted to the wing (the inner section acted as landing flaps), and lift spoilers were also fitted to the upper and lower wings. A conventional tail unit was used, also with all wooden construction. Landing was done on a retractable skid. Since the DFS 228 was to operate in extremely high altitudes, a completely pressurized cockpit was designed. Although it was thought at first that the pressure cabin could be of wooden construction, a metal compartment was built after the wooden one failed to hold sufficient pressure. The nose section was double-walled constructed with aluminum foil insulation. The V1 prototype had a conventional seated pilot's position, but the V2 and later aircraft were to have a prone pilot position, due to the difficulty of of sealing such a large compartment with the pilot seated upright. All glazed areas were made of double layered Plexiglas and were provided with warm air circulation between layers to prevent frosting of the Plexiglas.
          After pressure sealing problems became apparent on the V1 cockpit, it was decided to go with a prone pilot. An adjustable horizontal couch was provided for the pilot to lay on; all controls, oxygen supplies and cockpit equipment mounted directly to the steel tube structure which was then attached directly to the main fuselage bulkhead at the back of the cockpit. This also had the added advantage of keeping the pressurized area small. thus it was easier to keep sealed. The new cockpit arrangement was incorporated in to the DFS 228 V2 and later aircraft.
          A very interesting flight plan was arranged for the operational recognizance DFS 228. It was to be mounted above (or could be towed behind) a carrier aircraft (usually a Do 217), where it was then carried to approximately 10000 meters (32808 feet). Upon release, the DFS 228 would then ignite its rocket engine until an altitude of about 23000-25000 meters (75460-82021 feet) was reached. By this time, the 228 would be over its photographic target area and after its reconnaissance mission was fulfilled, the aircraft would then make a long glide back to base.
          In the case of an emergency at high altitudes, the complete pressurized nose section (with all life support equipment attached) could be jettisoned by firing four explosive bolts, or it could take place automatically when the cockpit pressure dropped below a minimum level. An automatic parachute would then deploy to stabilize and slow the descent. When a safe altitude was reached, the pilot was ejected by compressed air, who would then descend to the ground using his personal parachute. This escape procedure was successfully tested by the Soviets after the war, with a captured DFS 346, which had a similar escape system.
          DFS 228 V1 flight trials were made at Hörsching, just southwest of Linz, by the DFS and also by Erprobungsstelle Rechlin in late 1944. Over 40 test flights were made, and although powered flight was to take place in February 1945,  none were actually made using rocket power, and none exceeded 10000 meters (32808 feet). It was in these tests that the upright pilot's position was found to be unsuitable for proper cockpit pressurization. The decision was made to go with the prone position cockpit, and was included into the DFS 228 V2, which was built and also flight tested. The main faults found with the 228 were that it suffered from poor aileron effectiveness at high altitudes and that the elevators were very sensitive. Other than the early pressurization problems, the general handling was satisfactory and the problems would not hamper the intended role of the aircraft. A potential problem could have arisen with the use of the Walter HWK 509A1 or A-2 rocket engines, due to the fact that the flight profile meant for the rocket engine to be intermittently operated, and the possibility existed of valves and pumps freezing up at the extreme altitudes and low temperatures in which the flight was to take place. Of course, newer rocket engines were continually being developed, and perhaps some sort of heating system or the possibility of using M-Stoff and A-Stoff (methanol and oxygen) for fuels, which could have operated at much lower temperatures, could have been developed.
          The DFS 228 V2 was destroyed at Hörsching in May 1945, only the forward section had parts worth salvaging. The DFS 228 V1 survived the war, and was surrendered at Ainring in the US Zone of Occupation. On June 18, 1945, it was taken by road to the US Air Technical Intelligence Unit at Stuttgart. It was later sent to the RAE Farnborough in June 1946, and although allegedly was sent to the scrap pile in 1947, another report has the DFS 229 V1 being sent to Slingsby Sailplanes Ltd. at Kirkbymoorside in Yorkshire. Strangely enough, Slingsby offered a design for their T44, a stratospheric research sailplane which incorporated several DFS 228 features, including the detachable pressurized cockpit section.

       Ronnie Olsthoorn's DFS 228 images


DFS 228 Dimensions
Span Length Height
(w/skid extended)		 Wing
Area
17.6 m
57' 9"		 10.59 m
34' 9"		 2.92 m
9' 7"		 30 m²
322.92 ft²
DFS 228 Weights
Empty Loaded Wing Loading
1350 kg
2976 lbs		 4210 kg
9281 lbs		 140 kg/m²
28.74 lbs/ft²
DFS 228 Performances
Max. Speed Ceiling Max. Range Landing Speed
@ sea level 900 km/h
559 mph
@ 11500 m
37730'		 750 km/h
466 mph
@ 23000 m
75459'		 700 km/h
435 mph
 		 25000 m
82021'		 1050 km
653 miles		 80 km/h
50 mph
DFS 228 Models
Manufacturer Scale Material Notes
Airmodel   AM0114 1/72 Vacuform
Huma   #3503 1/72 Injected & Decals includes mounting struts for
Do 217K carrier aircraft
 DFS 228 cockpit, designed by Dr. Felix Kracht






      DFS test pilot Rolf Mödel tries out the prone position at the DFS Ainring facility. The landing skid activation lever can be seen near the bottom of the photo.










                         Detachable         C-Stoff                    T-Stoff          Walter HWK 509
                      Pressure Cabin       Tank                        Tank               Rocket Engine

                     Zeiss Infa-red Camera               Landing Skid                                   Fuel Lines      Combustion Chamber




     The escape sequence from the DFS 228



1) The pressurized nose section is separated from the fuselage by four explosive bolts.





2) The nose section's descent is slowed by the use of a parachute.




3) When a safe altitude is reached, the pilot is ejected from the nose section.



4) The pilot's parachute is automatically deployed.


5) A normal parachute landing is then made.

 The rear of the DFS 228's pressure cabin, note the
four explosive bolts and hookups for
electrical connections and flight controls



A side view of the pressurized nose section of the DFS 228





The DFS 228 V1 atop its Dornier Do 217K V-3 carrier aircraft

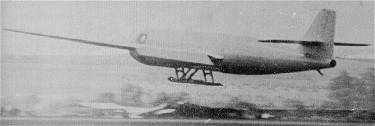

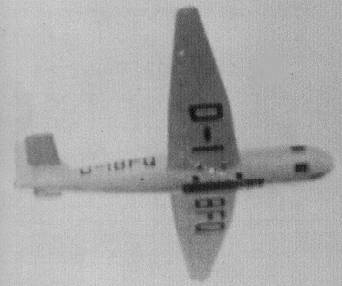

In Flight (unpowered/gliding) photos of the DFS 228




    The DFS 228 at Ainring, just before its removal to the US Air Technical Intelligence Unit at Stuttgart













    Farnborough 1946: The remains of the DFS 228 V1 languishes outside, its final disposition is unknown.
