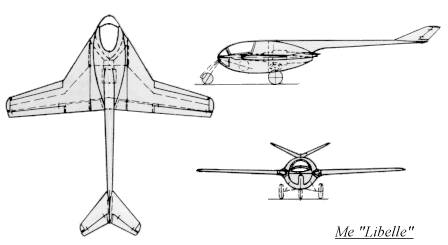

Me Libelle 3 view     This Miniaturjäger (Miniature Fighter) project carried the "powered egg" design to the extreme. The short, egg-shaped fuselage held the single He S 011 jet engine and exausted beneath a long boom which held the V-tail. The Messerschmitt "Libelle" (Dragonfly) also utilized a retractable, tricycle undercarriage. Details of what armament to be fitted are unknown.


     Kevin Wafer's Me "Libelle" art images                  Ronnie Olsthoorn's Me "Libelle" art images


      Span: 7 m (22' 11.8")        Length: 7.3 m (23' 11.6")       Max. Speed: Unknown
