Lippisch Li P.11 - December 1942 Design

          Dating from December 2, 1942, this project was a design for a high-speed bomber and was developed by Hendrick of Department "L" at Messerschmitt. The spacious fuselage was designed to hold an internal bomb load and a small 320 kg (705 lbs) fuel tank. Also located in the fuselage/wing root area were two Jumo 004B turbojet engines, which were fed from intakes in the leading edge of the wing next to the cockpit. The wing was swept back at approximately 29 degrees and contained four fuel tanks (two per side) of 400 kg and 540 kg (882 lbs and 1190 lbs) capacity. A single fin and rudder was fitted to the rear fuselage. One very interesting feature was the swinging stabilizers that were hinged to the stabilizers of the rudder, which would be hydraulically deflected to a horizontal position. A single pilot sat in the cockpit which was loacted in the nose of the aircraft. The bombload consisted of up to 1000 kg (2205 lbs) of bombs and no defensive armament was planned at this stage. A further development of the P.11 (Delta VI) was begun in Vienna, and progressed to a wooden mockup/prototype.

Lippisch Li P.11 Data
(December 1942)
Span Length Height Main Gear Width Wing Area Empty Weight Gross Weight
12.65 m
41' 6"
8.14 m
26' 9"
4.0 m
13' 2"
2.9 m
9' 6"
37.3 m²
401.5 ft²
4005 kg
8830 kg
7500 kg
16535 kg

Lippisch Li P.11 Models
(December 1942)
There are no scale models currently of this aircraft

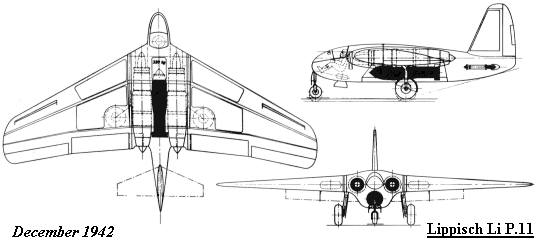

Click here for a large format 3-view drawing of the Lippisch Li P.11 (December 1942 version)

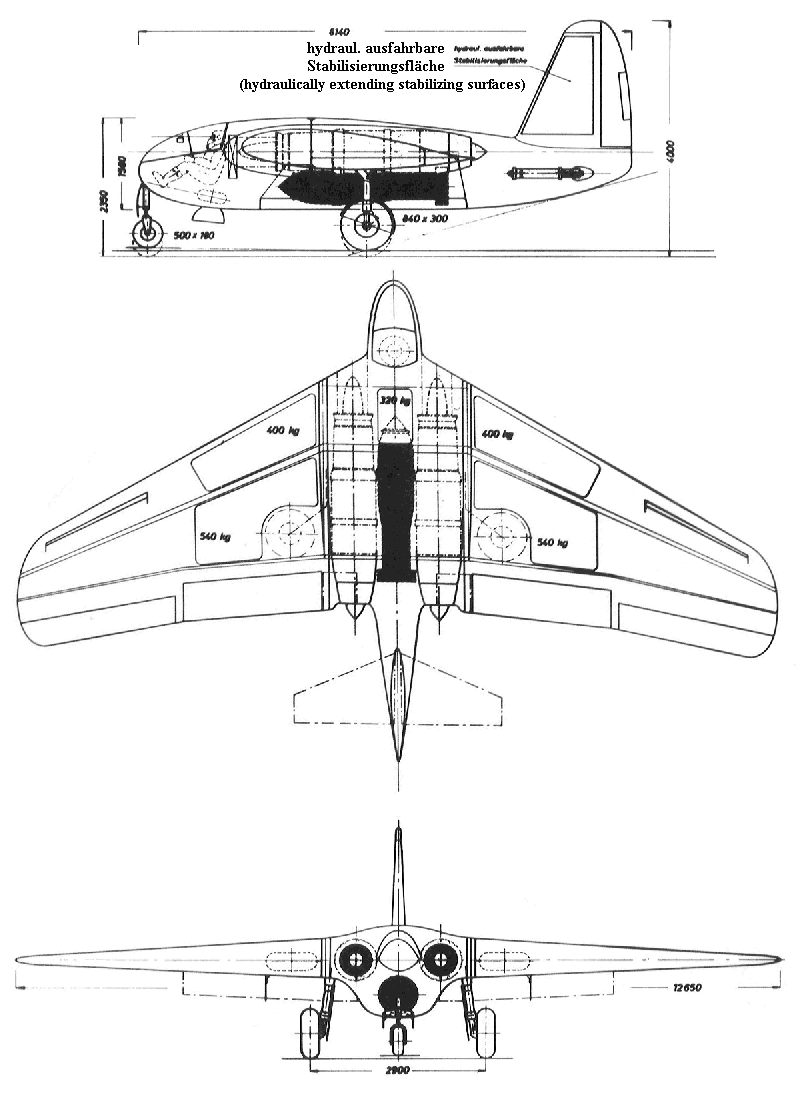

Original drawing of the Lippisch Li P.11

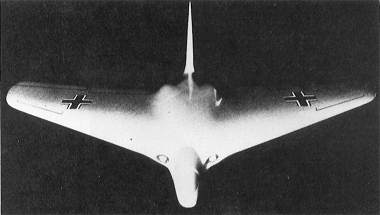

Original wartime model of the Lippisch Li P.11
