Fw P.II 3 view     This was the second design from Kurt Tank of the Focke-Wulf company for a single-jet engine, single-seat fighter, submitted June 9, 1943. The wing was mounted mid-fuselage and had a slight sweep on the leading edge and straight trailing edges. A Jumo 004B turbojet was slung beneath the fuselage because of fears of operational problems associated with mounting the jet engine on top of the fuselage. The main advantage was to facilitate maintenance, but there were several bigger disadvantages to this design, such as the nose wheel blocking the intake on takeoff and landing, foreign matter being sucked into the intake since it was so close to the ground and the destruction of the jet engine in case of a belly landing. The cockpit was protected by armor of varying thicknesses. Armament was to be two MK 108 (70 rounds each) or MK 103 30mm cannon in the fuselage nose and two MG 151/20 20mm cannon (175 rounds each) in the wing roots.

   View Andreas Otte's Fw P.II images

Focke-Wulf P.II Dimensions
Span Length Height Track Width Tail Span Wing Area
9.7 m
31' 10"		 9.85 m
32' 4"		 4.43 m
14' 6"		 4.7 m
15' 5"		 3.8 m
12' 6"		 15.0 m²
161.46 ft²
Focke-Wulf P.II Weights
Empty Weight Equipped Takeoff Weight Max. Wing Loading Fuel Weight Ammo Armor
2410 kg
5313 lbs		 3350 kg
7385 lbs		 223 kg/m²
45.6 lbs/ft²		 650 kg
1433 lbs		 160 kg
353 lbs		 100 kg
220 lbs
Focke-Wulf P.II Performance*
Max. Speed† Rate of Climb Takeoff Distance Takeoff Speed Range Ceiling
at sea level
850 km/h
528 mph
--------------
at 4 km (13123')
870 km/h
541 mph
--------------
at 12 km (39370')
780 km/h
485 mph		 at sea level
20 m/sec
66 ft/sec
------------
at 4 km (13123')
14 m/sec
46 ft/sec
------------
at 12 km (39370')
1.1 m/sec
4 ft/sec		 400 m
1312'		 170 km/h
106'		 640 km
398 miles		 12400 m
40682'
* with Jumo 004C turbojet       † with 20% overthrust


Focke-Wulf P.II Models
Manufacturer Scale Material Notes
Czechmaster 1/72 Resin solid cast fuselage
Special Hobby 1/72 Injected, Photoetch & Decals

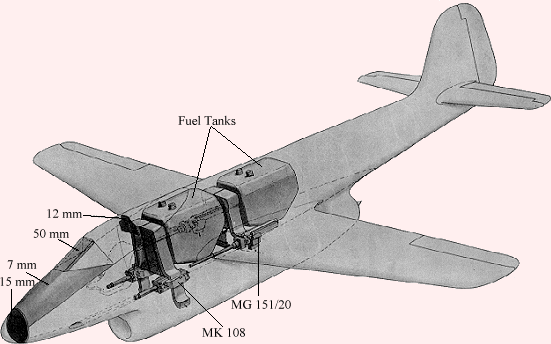

 Focke-Wulf Project II
Fighter with Turbojet engine Jumo 004
Weight Distribution as of July 20, 1943
Measurements in millimeters


Note: the measurements above are for the armor plate thicknesses






Color image above from Luftwaffe Secret Projects: Fighters 1939-1945
