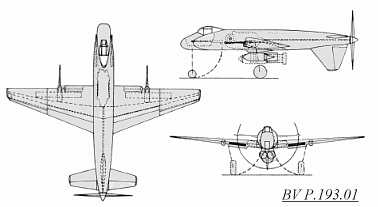

BV P.193.01  3 view     This design for a ground attack/dive bomber was similar to the BV P.192.01. The Jumo 213A engine drove a pusher propeller via a long shaft. A single fin and rudder was mounted beneath the fuselage to afford the rear propeller with protection during take off. The wing had a straight leading edge and tapered trailing edge. Projected armament was two MK 103 30mm cannon in the wings and two MG 151/20 20 mm cannon on the nose sides. 1000 kg (2200 lbs) of bombs could be carried.


      View Josha Hildwine's BV P.193 LuftArt images

    Span: 11.4 m (37' 5.2")     Length: 10.3 m (33' 9.8")     Max. Speed: 570 km/h (354 mph)
