Arado TEW 16/43-23

     This fighter dates from 1943, and was to be of an all-metal construction. It featured swept-back wings, and two He S 011 turbojets were mounted beneath the wings. The fuselage contained three fuel tanks which were located behind the cockpit. A single fin and rudder was fitted with the tailplanes having a small amount of sweep also. The main landing gear rotated 90 degrees before being retracted forwards into the wing. As per the Ar TEW 16/43-13, a spherical tire was chosen for the front landing gear. The cockpit was located in the forward part of the fuselage, and armament consisted of a single MG 151/15 15mm machine gun and two MG 213/20 20mm cannon, all located in the nose beneath the cockpit. This aircraft did not get out of the preliminary design phase; instead, design and production was concentrated on the Ar 234.

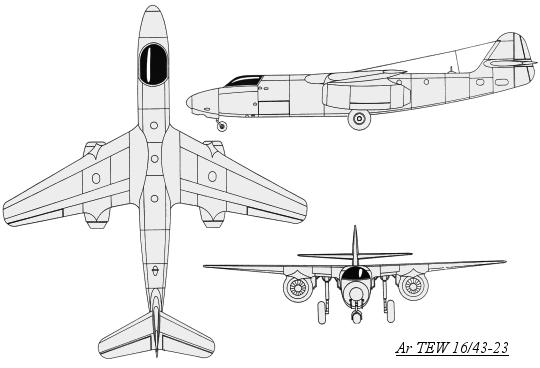

Arado Ar TEW 16/43-23
Span Length Height Wing Area Max Weight Max Wing Load Max. Speed Ceiling
10.6 m
34' 9"
12.2 m
40' 1"
2.69 m
8' 10"
20 m²
215.28 ft²
7000 kg
15432 lbs
350 kg/m²
71.6 lbs/ft²
920 km/h
572 mph
12000 m
39370'


Arado Ar TEW 16/43-23 Models
There are no models currently of this aircraft

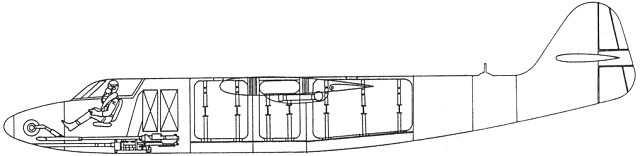

A simple cutaway drawing of the Arado Ar TEW 16/43-23





Above images from Reichdreams Dossier #16: Arado Jet Fighters
